Automatic 250-500ml Half-Tray Can Shrink Wrapping Machine with 1060mm Conveyor Height and 4500kg Weight

250-500ml Half-Tray Can Shrink Wrapping Machine

1060mm Conveyor Height Shrink Packer

4500kg Weight Heat Tunnel Packing Machine

Hubungi Kami

Minta Kutipan

Automatic 250-500ml Half-Tray Can Shrink Wrapping Machine with 1060mm Conveyor Height and 4500kg Weight

Rincian produk

Model no.:

SPC-MSW45F

Tipe yang digerakkan:

Listrik

Sesuaikan Kecepatan:

Regulasi Kecepatan Konversi Frekuensi

Mode Pemanasan:

Tabung Pemanas Kuarsa

Kapasitas:

25-120 Paket/Menit

Tekanan udara:

0.6 ~ 0.8Mpa

Bahan film:

Berat:

4500kg

Tinggi Konveyor:

1060mm

Kurangi Suhu:

200ºC~280ºC

Lebar film:

≤900mm

Ketebalan film:

0,06~0,12 mm

diameter film:

≤400mm

Tingkat kebisingan:

≤65db

Kekuatan:

380V/50Hz

Menyoroti:

250-500ml Half-Tray Can Shrink Wrapping Machine

1060mm Conveyor Height Shrink Packer

4500kg Weight Heat Tunnel Packing Machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

80000

Produk terkait

Double Channel Automatic Shrink Wrapper Machine dengan kapasitas 30-260 karton/menit dan 380V 50Hz Power

Dapatkan Harga Terbaik

Fully Automatic PET Bottle Heat Packer Shrink Wrapping Machine High Speed 30-260 Cartons/Minute 380V 50Hz

Dapatkan Harga Terbaik

50 Paket Per Menit Mesin Pengemasan Penyusutan Otomatis dengan Kedua Ujung Terbuka dan Didorong Mekanis untuk Jalur Produksi Minuman

Dapatkan Harga Terbaik

Pengemasan kemasan otomatis untuk makanan dan minuman dengan kapasitas 100g-3kg dan output 12.000 sampai 48.000 botol/jam

Dapatkan Harga Terbaik

Hubungi Kami

+86 13030636622

marketing@pyspc.com

Hubungi Sekarang

Deskripsi Produk

Automatic 250-500ml Half-Tray Can Film Heat Tunnel Shrink Wrapping Packing Machine

Product Overview

This shrink film packing machine features simple operation, wide application range, and excellent sealing performance. Designed with an integrated structure for easy maintenance, it utilizes servo motors for efficient product changeovers. The removable HMI operation panel displays machine information clearly.

Key Features

Special film reel and cutter device with innovative tension transfer system
Easy film length adjustment and color film positioning
Film adheres securely to product base for firm, reliable packaging
Advanced electric heating tunnel (70KW) with efficient shrinking at 200°C (actual consumption <40KW)
Removable operation panel with HMI interface
Servo motor driven for quick product changeovers

Technical Specifications

Parameter	Specification
Capacity	60packs/min; Dual channel 60*2 packs/min
Packing Pattern	34; 46, 4*7 (D.55-62mm)
Shrink Temperature	200°C~280°C
Compatible Products	PET bottles, tin cans, cases
Container Shape	Cylinder / Square
Film Width	≤900mm
Film Thickness	0.06~0.12mm
Film Diameter	≤400mm
Noise Level	≤65dB
Power Supply	380V/50Hz
Air Pressure	0.6~0.8Mpa
Air Consumption	100NL/min
Main Machine Power	35kW
Dimensions (mm)	L×W×H: 20695×2890×3000
Weight	10.5 tons

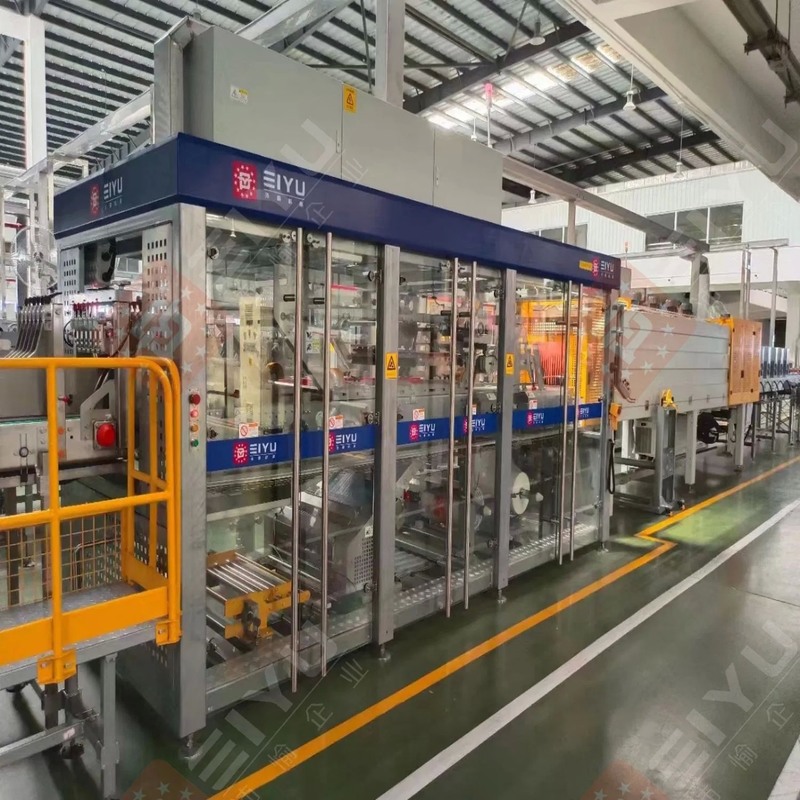

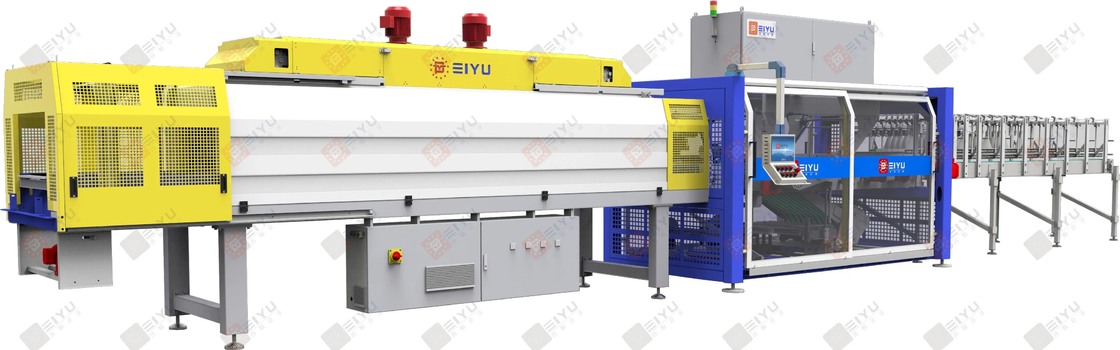

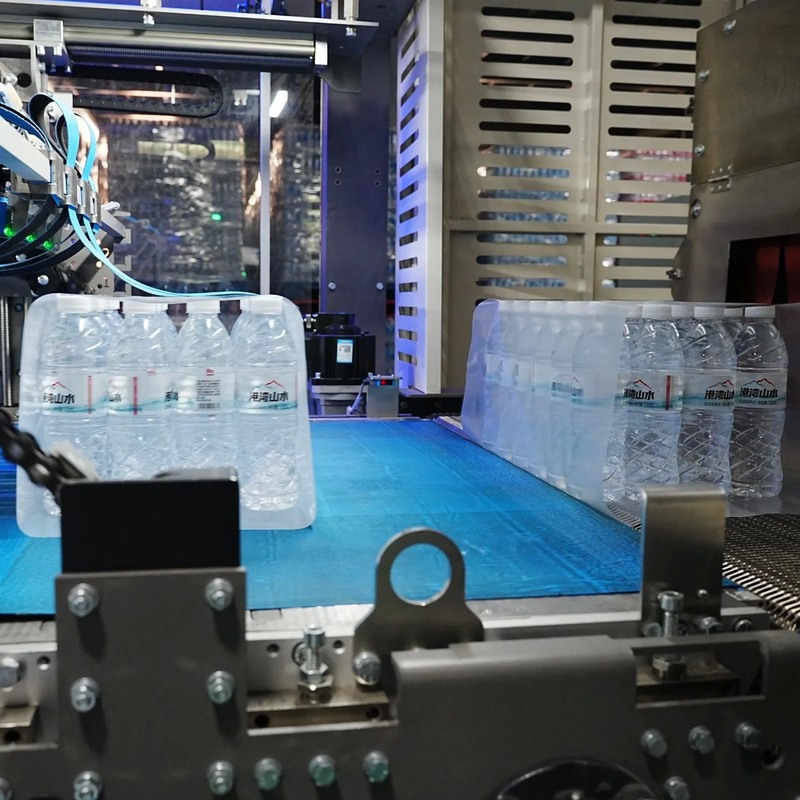

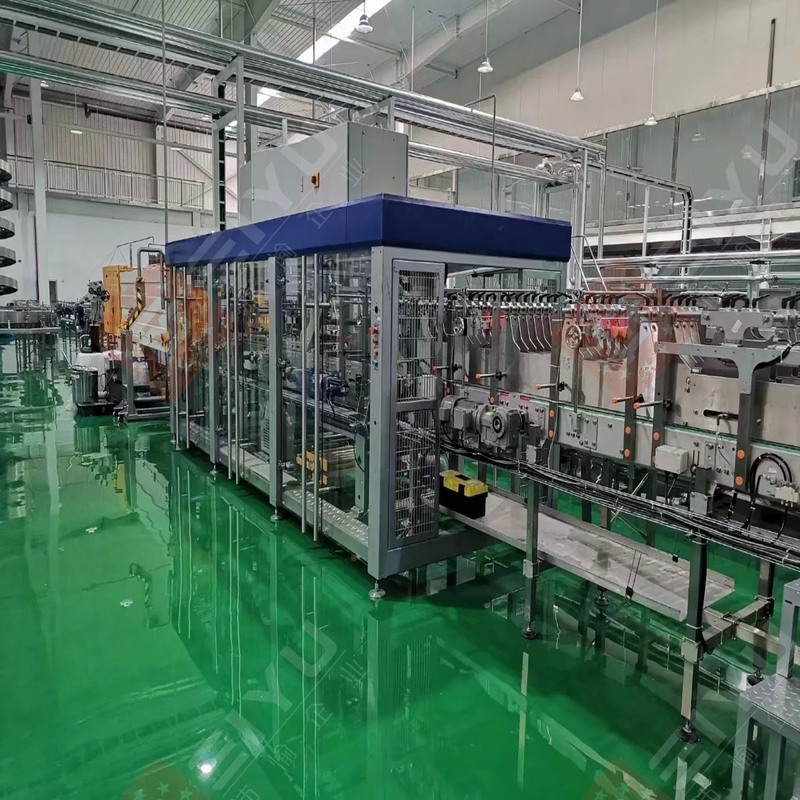

Product Images
